AMADEUS
Amadeus ABB 12
Amadeus C 12 R
Amadeus C 6
Amadeus C 8 R
Amadeus DIVA M² SUB
LOUD PROFESSIONAL
Formula F205
Frequency Range 80 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL 139 dB
Components LMF 2 x 5in. Neodymium cone driver
Components HF 1 x 4in. Neodymium planar wave driver
Nominal Impedance 16 Ω (Internal passive network)
Power Handling (LMF / MHF) 200 / 800 W
Rigging: Formula™ rigging system
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 174 / Width 468 / Depth 370 mm
Weight 12.5 Kg
Supported Processing: Armonia Pro Audio Suite
FocusEight
Frequency Range 65 Hz – 20 kHz
Nominal Directivity H x V: 70° x 10°
Maximum Peak SPL 139 dB
Components LMF 2 x 8in. Neodymium cone driver
Components MHF 1 x 1.5in. exit Neodymium compression Driver
Nominal Impedance LMF 8 Ω / MHF 16 Ω
Power Handling LMF 2.600 W / HF 440 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Ply Birch
Height 270 / Width 650 / Depth 570 mm
Weight 29 Kg
Supported Processing Armonia Pro Audio Suite
Formula Sub F221
Frequency Range 25 Hz - 150 Hz
Nominal Directivity H x V : Ominidirectional
Maximum Peak SPL LF 148 dB
Components LF 2 x 21in. Ferrite cone driver
Nominal Impedance LF 4 Ω
Power Handling (AES / Peak) LF 3.000 / 12.000 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Birch-ply
Height 620 / Width 1250 / Depth 1018 mm
Weight 125 Kg
Supported Processing : Armonia Pro Audio Suite
Gamma6
Frequency Range 75 Hz - 20 kHz (65 Hz @ -10dB)
Nominal Directivity H x V : 70° x 70° - Conical
Maximum Peak SPL 122 dB
Components LMF 1 x 6.5in. Neodymium / MHF 1 x 1in. Neodymium
Nominal Impedance 8 or 16 Ω
Power Handling (Peak) 800 W
Connections 3 x SpeakON™ NL4 (Two on the Rear side, one on the bottom side)
Enclosure Construction 12 mm Birch-ply
Height 350 / Width 210 / Depth 250 mm
Weight 5 Kg
Supported Processing : Armonia Pro Audio Suite & Armonia Plus
Formula F215
Frequency Range 50 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL (LF / MF / HF) 145 / 141 / 148 dB
Components LF 2 x 15in. Ferrite cone driver / MF 2 x 6.5in. Neodymium / HF 3 x 4in. Neodymium planar wave driver
Nominal Impedance LF 2 x 8 Ω / MF 8 Ω / HF 5.3 Ω
Power Handling (Peak) LF 2 x 6.000 W / MF 1.440 W / HF 960 W
Rigging Formula™ rigging system
Connections 2x SpeakON™ NL8
Enclosure Construction 18 / 24 mm Birch-ply
Height 450 / Width 1250 / Depth 625 mm
Weight 106 Kg
Supported Processing : Armonia Pro Audio Suite

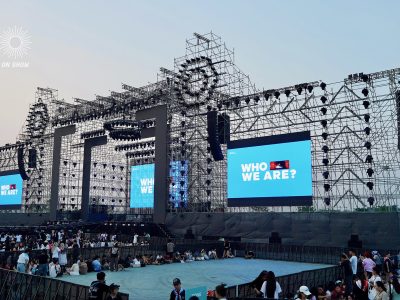

Formula F212
Frequency Range 65 Hz - 21 kHz
Nominal Directivity H x V : 90° x 10°
Maximum Peak SPL (LF / MF / HF) 145 / 141 / 148 dB
Components LF 2 x 12in. Neodymium / MF 2 x 6.5in. Neodymium / HF 3 x 4in. Neodymium planar wave driver
Nominal Impedance LF 2 x 8 Ω / MF 8 Ω / HF 5.3 Ω
Power Handling (Peak) LF 2 x 4.000 W / MF 1.440 W / HF 960 W
Rigging Formula™ rigging system
Connections 2x SpeakON™ NL8
Enclosure Construction 18 / 24 mm Birch-ply
Height 450 / Width 1250 / Depth 625 mm
Weight 106 Kg
Supported Processing: Armonia Pro Audio Suite
RCF

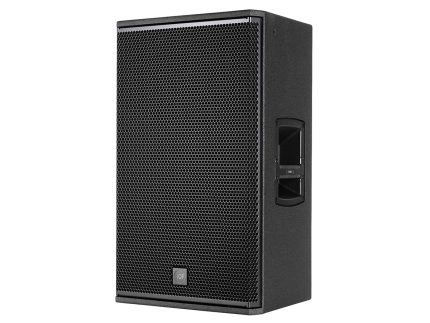

RCF NX 915-A
RCF NX 915-SMA
New design TRW controlled dispersion horn 100° x 70° coverage
2100 Watt power and 131 dB max SPL
FiRPHASE for 0° Phase Response
15” Woofer, 2.5” v.c.
Compression driver with Kapton dome and 1,75 voice coil.
Bass Motion Control Technology
IP Rated Powercon TRUE1 TOP IN/OUT Mains Connections
Multifunctional cabinet

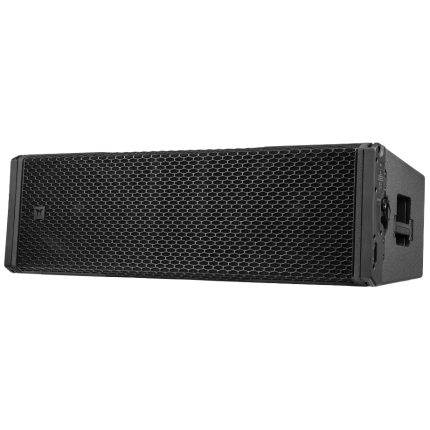

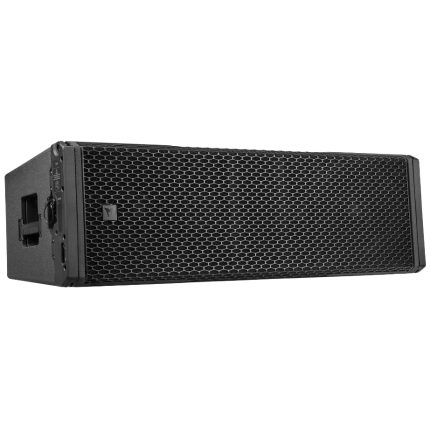

RCF GTX 12
THREE-WAY LINE ARRAY MODULE
148 dB max SPL
4 x 6” neo midrange drivers, 2” v.c.
2 x 3” titanium dome, neo compression drivers
2 x 12” neo woofers, 3.5” v.c.
90° x 10° 4PATH waveguide
Designed to operate with XPS 16K amplifier (4 XPS channels powering up to 3 modules)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
2 x P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)
RCF NX 912-SMA
New design TRW controlled dispersion horn 100° x 70° coverage
2100 Watt power and 130 dB max SPL
100° x 70° coverage
FiRPHASE for 0° Phase Response
12” Woofer, 2.5” v.c.
Compression driver with Kapton dome and 1,75 voice coil.
Bass Motion Control Technology
IP Rated Powercon TRUE1 TOP IN/OUT Mains connections
Multifunctional cabinet

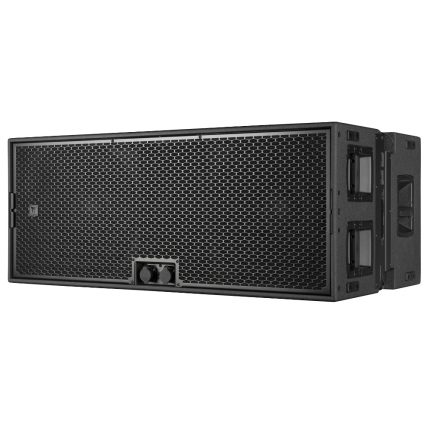

RCF GTS 29
HIGH-PERFORMANCE FLYABLE SUBWOOFER
144 dB max SPL
2 x 19” neo woofers, 4” v.c.
3 side handles
Designed to operate with XPS 16K amplifier (4 modules per amp unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
2 x 2 P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)

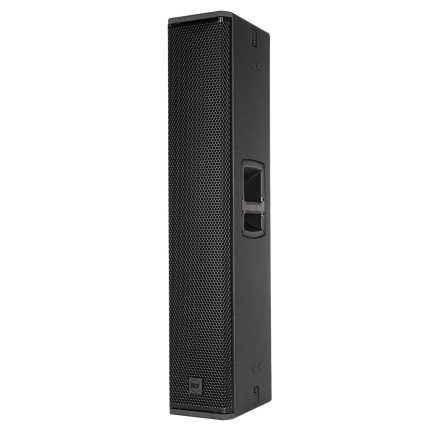

RCF NXL 24-A MK2
Up to 132 dB Sound Pressure Level
2100W Class-D Amplifier
100° x 30° Constant Directivity Coverage Angle
3" Titanium Neodymium Compression Driver
4 x 6" High Power Neodymium Woofers
60-20000 Hz linear Frequency Response
Bass Motion Control and FiRPHASE processing
4 x M8 Rigging Points and 4 x Quick Lock
L-ACOUSTICS
L-Acoustics SB18 IIi

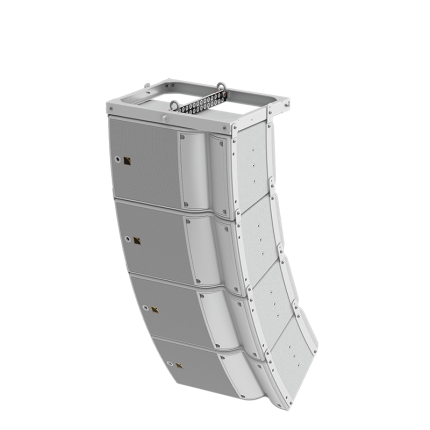

L-Acoustics A10 Focus
L-Acoustics P1
AVB processor and measurement platform
Architecture 20 x 16 (+ headphones)
Busses 8 DSP busses + Cue Bus
I/O 8 AVB I/O, 4 Line I/O, 4 AES I/O, 4 Mic/Line inputs (48V)
Processing (per bus) Gain, mute, polarity, delay
16 EQ filters
Clip protection
Height 1U
Network Milan-certified with seamless network redundancy
L-Acoustics X8

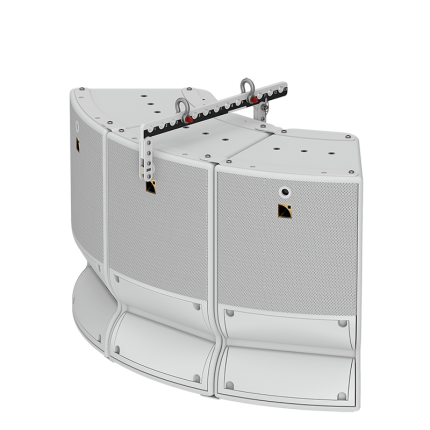

L-Acoustics A10i Wide
L-Acoustics SB10i
FINE ART

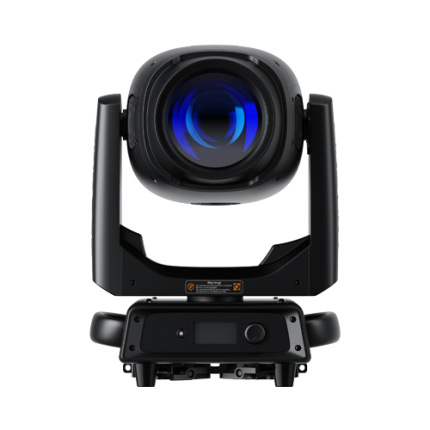

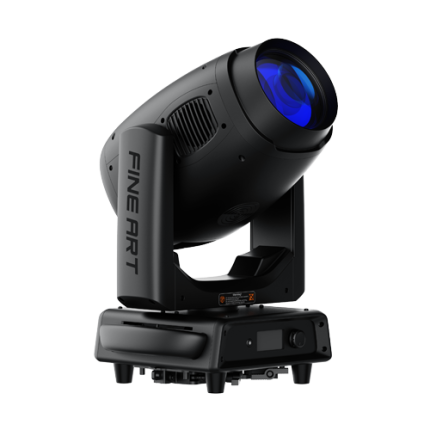

FINE 600 BSW II
FINE 600 BSW II is a moving head light that integrates three functions of beam, pattern and wash. This is a lamp that perfectly interprets the three-in-one light beam, pattern and dyeing. It has the sharp light perception of pure beam lights, the clear imaging and spot uniformity of professional pattern lights, and the soft light quality of professional wash lights. Surprisingly it switches from beam mode to pattern mode with almost no light loss. It has a rich color system (CMY+CTO+flowing color wheel+13 color chips+white light), various patterns (rotating pattern wheel+fixed pattern wheel), and a variety of effect configurations (fog, eight prisms, twenty-four prisms , motion wheel). The optical efficiency is higher and the pattern effect is more uniform. No matter what kind of light effect you need, FINE 600 BSW II can satisfy you. It also has advanced thermal system design to ensure the stability and reliability of the lamp. At the same time, it is small in size, light in weight and easy to operate, fully meeting the lighting effect needs of various performance venues.
FINE 600LB BSW IP
FINE 600LB BSW IP is a multi - functional LED moving - head computer lighting fixture launched by Color Kinetics. It is specially designed for indoor and outdoor performances, integrating beam, color - washing, and pattern functions. With a beam angle as small as 3.3degrees, it can project sharp and highly penetrative aerial beam effects, and the clear pattern is a major highlight of the product. Equipped with an IP66 protection rating and a metal casing, it ensures stable operation around the clock. Its innovative design allows for the convenient replacement of gobos, just like indoor lighting fixtures. It has a built - in second - generation color standard, providing accurate color representation. The NFC function enables the setting of the lighting fixture without power supply, improving operational efficiency. The lighting fixture is lightweight and portable, suitable for rapid deployment. It is applicable to a variety of scenarios such as cultural and tourism projects, outdoor performances, sports events, TV stations, theaters, concerts, and auto shows, making it an ideal choice for lighting designers.

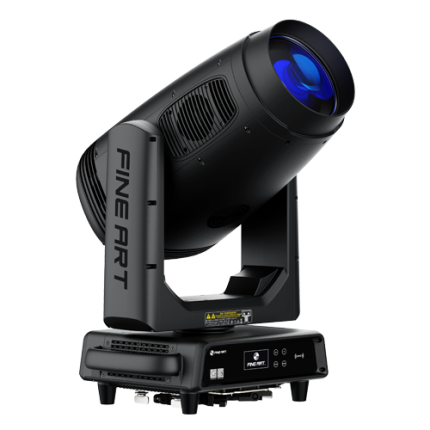

FINE 1700L WASH PERF IP
FINE 1700L WASH PERF IP is a dyeing and cutting computer moving head light equipped with the latest high-efficiency light engine, Ra≥90, and the light source life is designed to be 20,000 hours; the luminous flux output of the whole machine can reach more than 50,000lm; good heat dissipation design supplemented by intelligent Fan control technology, the lower the ambient temperature, the lower the noise; the cooling system with patented technology, continuous full power use at room temperature without power reduction. The built-in second-generation color standard ensures that the color of the whole lamp is consistent with that of gas discharge light source lamps. 2 color wheels with 6 colors + white light respectively, CMY stepless color mixing, CTO color temperature linear adjustment, a full-range cutting system that can rotate ±90 degrees. The product is suitable for high-end places such as TV stations, theaters, concerts, large-scale evening parties, electronic music festivals, auto shows, etc., especially suitable for 4K high-definition studios and places with high noise requirements such as theaters and concert halls.
FINE 1400LH BSWF IP
FINE 1400LH BSWF IP is an LED moving head light developed by FINE ART for both indoor and outdoor performance markets. It perfectly integrates beam, wash, gobo, and framing functions to meet the needs of various performances. Its unique optical design ensures that the gobo patterns remain sharp and clear, even when adjusting between narrow and wide zoom angles. With an IP66 protection rating and a durable die-cast aluminum housing, the FINE 1400LB BSWF IP offers reliable performance under all weather conditions, ensuring worry-free operation year-round. The innovative structural design makes it as lightweight as indoor fixtures, making installation and transportation convenient, eliminating concerns over assembly and disassembly. The built-in second-generation color standard ensures precise and consistent color reproduction. Additionally, the integrated NFC (Near Field Communication) function allows for easy fixture setup and information retrieval without needing to power it on, greatly improving operational convenience. Lightweight and portable, the FINE 1400LH BSWF IP is an ideal choice for cultural and tourism performances, outdoor shows, large-scale sporting events, television studios, theaters, stages, concerts, auto shows, and various other indoor and outdoor performances.
FINE 1700LB BSWF IP
FINE 1700LB BSWF IP - an all-weather LED moving head computer light launched by CHAIYI for high-end indoor and outdoor performance markets. It stands out with its multifunctional design that integrates beam, dyeing, patterning and framing. It has excellent range, with an efficient range of up to 100m, while providing excellent light quality; using a patented heat dissipation system, it can maintain full power use at room temperature without reducing power, and is incredibly low Noise is less than 45dB. Built-in second-generation color standard ensures color consistency, purity and wide color gamut. Powerful in function, it is equipped with 1 color wheel with a total of 6 color chips, 2 rotating pattern wheels, 1 dynamic effect wheel, and a full framing system that can rotate ±90°. The framing image is clear and distortion-free. IP66 protection grade design, the entire lamp adopts aluminum alloy die-cast shell to ensure stable use in all weather outdoors. Lightweight and portable, it is suitable for cultural tourism, outdoor live performances, large stadiums, TV stations, theaters, stages, concerts, large parties, car shows and other places.
FINE 1200C STROBE IP
FINE 1200C STROBE IP is an excellent all-weather luminaire. The innovative design brings rich and delicate visual effects. It has up to 40 RGB color pixels, making the lighting effect layer richer. At the same time, a total of 700W high-power white light in 10 segments can burst out more than 100,000 lumens of luminous flux, bringing a very impressive visual performance. With IP66 protection, it supports all-weather outdoor use while significantly reducing maintenance costs. The 16-bit dimming technology ensures that the lamps are not only suitable for variety shows, but also meet the demanding requirements of fine dimming for theater. The breakthrough structural design allows it to achieve the same function and effect while maintaining the same size and weight as the indoor version. In addition, the built-in non-touch NFC function, through the mobile phone APP touch can operate all the functions of the lamp panel, greatly improving the convenience of use. This product is undoubtedly ideal for professional stage performances and outdoor activities.
